iOS开发之微信聊天页面实现

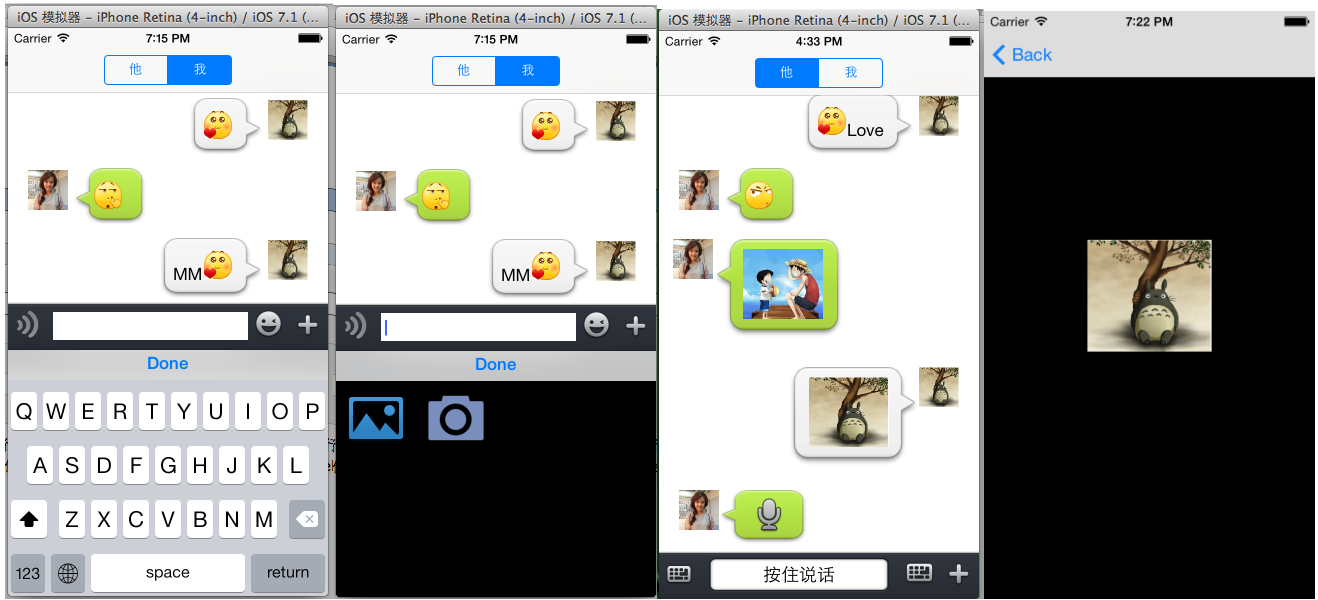

聊天界面的效果图如下：在下面的聊天界面中中用到了3类cell,一类是显示文字和表情的，一类是显示录音的，一类是显示图片的。当点击图片时会跳转到另一个Controller中来进行图片显示，在图片显示页面中添加了一个捏合的手势。点击播放按钮，会播放录制的音频，cell的大学会根据内容的多少来调整，而cell中textView的高度是通过约束来设置的。

　　一，定义我们要用的cell,代码如下：

　　　　1，显示表情和text的cell,代码如下，需要根据NSMutableAttributedString求出bound,然后改变cell上的ImageView和TextView的宽度的约束值，动态的调整气泡的大小，具体代码如下：#import "TextCell.h"@interface TextCell()@property (strong, nonatomic) IBOutlet UIImageView *headImageView;@property (strong, nonatomic) IBOutlet UIImageView *chatBgImageView;@property (strong, nonatomic) IBOutlet UITextView *chatTextView;@property (strong, nonatomic) IBOutlet NSLayoutConstraint *chatBgImageWidthConstraint;@property (strong, nonatomic) IBOutlet NSLayoutConstraint *chatTextWidthConstaint;@property (strong, nonatomic) NSMutableAttributedString *attrString;@end@implementation TextCell-(void)setCellValue:(NSMutableAttributedString *)str{//移除约束[self removeConstraint:_chatBgImageWidthConstraint];[self removeConstraint:_chatTextWidthConstaint];self.attrString = str;NSLog(@"%@",self.attrString);//由text计算出text的宽高CGRect bound = [self.attrString boundingRectWithSize:CGSizeMake(150, 1000) options:NSStringDrawingUsesLineFragmentOrigin context:nil];//根据text的宽高来重新设置新的约束//背景的宽NSString *widthImageString;NSArray *tempArray;widthImageString = [NSString stringWithFormat:@"H:[_chatBgImageView(%f)]", bound.size.width+45];tempArray = [NSLayoutConstraint constraintsWithVisualFormat:widthImageString options:0 metrics:0 views:NSDictionaryOfVariableBindings(_chatBgImageView)];_chatBgImageWidthConstraint = tempArray[0];[self addConstraint:self.chatBgImageWidthConstraint];widthImageString = [NSString stringWithFormat:@"H:[_chatTextView(%f)]", bound.size.width+20];tempArray = [NSLayoutConstraint constraintsWithVisualFormat:widthImageString options:0 metrics:0 views:NSDictionaryOfVariableBindings(_chatTextView)];_chatBgImageWidthConstraint = tempArray[0];[self addConstraint:self.chatBgImageWidthConstraint];//设置图片UIImage *image = [UIImage imageNamed:@"chatfrom_bg_normal.png"];image = [image resizableImageWithCapInsets:(UIEdgeInsetsMake(image.size.height * 0.6, image.size.width * 0.4, image.size.height * 0.3, image.size.width * 0.4))];//image = [image stretchableImageWithLeftCapWidth:image.size.width * 0.5 topCapHeight:image.size.height * 0.5];[self.chatBgImageView setImage:image];self.chatTextView.attributedText = str;}@end　2.显示图片的cell,通过block回调把图片传到Controller中，用于放大图片使用。#import "MyImageCell.h"@interface MyImageCell()@property (strong, nonatomic) IBOutlet UIImageView *bgImageView;@property (strong, nonatomic) IBOutlet UIButton *imageButton;@property (strong, nonatomic) ButtonImageBlock imageBlock;@property (strong, nonatomic) UIImage *buttonImage;@end@implementation MyImageCell-(void)setCellValue:(UIImage *)sendImage{self.buttonImage = sendImage;UIImage *image = [UIImage imageNamed:@"chatto_bg_normal.png"];image = [image resizableImageWithCapInsets:(UIEdgeInsetsMake(image.size.height * 0.6, image.size.width * 0.4, image.size.height * 0.3, image.size.width * 0.4))];[self.bgImageView setImage:image];[self.imageButton setImage:sendImage forState:UIControlStateNormal];}-(void)setButtonImageBlock:(ButtonImageBlock)block{self.imageBlock = block;}- (IBAction)tapImageButton:(id)sender {self.imageBlock(self.buttonImage);}@end　3.显示录音的cell,点击cell上的button,播放对应的录音，代码如下：#import "VoiceCellTableViewCell.h"@interface VoiceCellTableViewCell()@property (strong, nonatomic) NSURL *playURL;@property (strong, nonatomic) AVAudioPlayer *audioPlayer;@end@implementation VoiceCellTableViewCell-(void)setCellValue:(NSDictionary *)dic{_playURL = dic[@"body"][@"content"];}- (IBAction)tapVoiceButton:(id)sender {NSError *error = nil;AVAudioPlayer *player = [[AVAudioPlayer alloc]initWithContentsOfURL:_playURL error:&error];if (error) {NSLog(@"播放错误：%@",[error description]);}self.audioPlayer = player;[self.audioPlayer play];}@end二，cell搞定后要实现我们的ChatController部分　　　　

ChatController.m中的延展和枚举代码如下：//枚举Cell类型typedef enum : NSUInteger {SendText,SendVoice,SendImage} MySendContentType;//枚举用户类型typedef enum : NSUInteger {MySelf,MyFriend} UserType;@interface ChatViewController ()//工具栏@property (nonatomic,strong) ToolView *toolView;//音量图片@property (strong, nonatomic) UIImageView *volumeImageView;//工具栏的高约束，用于当输入文字过多时改变工具栏的约束@property (strong, nonatomic) NSLayoutConstraint *tooViewConstraintHeight;//存放所有的cell中的内容@property (strong, nonatomic) NSMutableArray *dataSource;//storyBoard上的控件@property (strong, nonatomic) IBOutlet UITableView *myTableView;//用户类型@property (assign, nonatomic) UserType userType;//从相册获取图片@property (strong, nonatomic) UIImagePickerController *imagePiceker;@end实现工具栏中的回调的代码如下，通过Block,工具栏和ViewController交互//实现工具栏的回调-(void)setToolViewBlock{__weak __block ChatViewController *copy_self = self;//通过block回调接收到toolView中的text[self.toolView setMyTextBlock:^(NSString *myText) {NSLog(@"%@",myText);[copy_self sendMessage:SendText Content:myText];}];//回调输入框的contentSize,改变工具栏的高度[self.toolView setContentSizeBlock:^(CGSize contentSize) {[copy_self updateHeight:contentSize];}];//获取录音声量，用于声音音量的提示[self.toolView setAudioVolumeBlock:^(CGFloat volume) {copy_self.volumeImageView.hidden = NO;int index = (int)(volume*100)%6+1;[copy_self.volumeImageView setImage:[UIImage imageNamed:[NSString stringWithFormat:@"record_animate_%02d.png",index]]];}];//获取录音地址（用于录音播放方法）[self.toolView setAudioURLBlock:^(NSURL *audioURL) {copy_self.volumeImageView.hidden = YES;[copy_self sendMessage:SendVoice Content:audioURL];}];//录音取消（录音取消后，把音量图片进行隐藏）[self.toolView setCancelRecordBlock:^(int flag) {if (flag == 1) {copy_self.volumeImageView.hidden = YES;}}];//扩展功能回调[self.toolView setExtendFunctionBlock:^(int buttonTag) {switch (buttonTag) {case 1://从相册获取[copy_self presentViewController:copy_self.imagePiceker animated:YES completion:^{}];break;case 2://拍照break;default:break;}}];}把聊天工具栏中返回的内容显示在tableView中，代码如下：//发送消息-(void)sendMessage:(MySendContentType) sendType Content:(id)content{//把收到的url封装成字典UserType userType = self.userType;NSMutableDictionary *tempDic = [[NSMutableDictionary alloc] initWithCapacity:2];[tempDic setValue:@(userType) forKey:@"userType"];NSDictionary *bodyDic = @{@"type":@(sendType),@"content":content};[tempDic setValue:bodyDic forKey:@"body"];[self.dataSource addObject:tempDic];//重载tableView[self.myTableViewreloadData];NSIndexPath *indexPath = [NSIndexPath indexPathForRow:self.dataSource.count-1 inSection:0];[self.myTableView scrollToRowAtIndexPath:indexPath atScrollPosition:UITableViewScrollPositionBottom animated:YES];}根据ToolView中回调接口，获取工具栏中textView的ContentSize,通过ContentSize来调整ToolView的高度约束，代码如下：//更新toolView的高度约束-(void)updateHeight:(CGSize)contentSize{float height = contentSize.height + 18;if (height <= 80) {[self.view removeConstraint:self.tooViewConstraintHeight];NSString *string = [NSString stringWithFormat:@"V:[_toolView(%f)]", height];NSArray * tooViewConstraintV = [NSLayoutConstraint constraintsWithVisualFormat:string options:0 metrics:0 views:NSDictionaryOfVariableBindings(_toolView)];self.tooViewConstraintHeight = tooViewConstraintV[0];[self.view addConstraint:self.tooViewConstraintHeight];}}从本地获取图片，并显示在相应的Cell上，代码如下：//获取图片后要做的方法-(void)imagePickerController:(UIImagePickerController *)picker didFinishPickingMediaWithInfo:(NSDictionary *)info{UIImage *pickerImage = info[UIImagePickerControllerEditedImage];//发送图片[self sendMessage:SendImage Content:pickerImage];[self dismissViewControllerAnimated:YES completion:^{}];}-(void)imagePickerControllerDidCancel:(UIImagePickerController *)picker{//在ImagePickerView中点击取消时回到原来的界面[self dismissViewControllerAnimated:YES completion:^{}];}把NSString 转换成NSMutableAttributeString,用于显示表情，代码如下：//显示表情,用属性字符串显示表情-(NSMutableAttributedString *)showFace:(NSString *)str{//加载plist文件中的数据NSBundle *bundle = [NSBundle mainBundle];//寻找资源的路径NSString *path = [bundle pathForResource:@"emoticons" ofType:@"plist"];//获取plist中的数据NSArray *face = [[NSArray alloc] initWithContentsOfFile:path];//创建一个可变的属性字符串NSMutableAttributedString *attributeString = [[NSMutableAttributedString alloc] initWithString:str];UIFont *baseFont = [UIFont systemFontOfSize:17];[attributeString addAttribute:NSFontAttributeName value:baseFontrange:NSMakeRange(0, str.length)];//正则匹配要替换的文字的范围//正则表达式NSString * pattern = @"\[[a-zA-Z0-9\u4e00-\u9fa5]+\]";NSError *error = nil;NSRegularExpression * re = [NSRegularExpression regularExpressionWithPattern:pattern options:NSRegularExpressionCaseInsensitive error:&error];if (!re) {NSLog(@"%@", [error localizedDescription]);}//通过正则表达式来匹配字符串NSArray *resultArray = [re matchesInString:str options:0 range:NSMakeRange(0, str.length)];//用来存放字典，字典中存储的是图片和图片对应的位置NSMutableArray *imageArray = [NSMutableArray arrayWithCapacity:resultArray.count];//根据匹配范围来用图片进行相应的替换for(NSTextCheckingResult *match in resultArray) {//获取数组元素中得到rangeNSRange range = [match range];//获取原字符串中对应的值NSString *subStr = [str substringWithRange:range];for (int i = 0; i < face.count; i ++){if ([face[i][@"chs"] isEqualToString:subStr]){//face[i][@"gif"]就是我们要加载的图片//新建文字附件来存放我们的图片NSTextAttachment *textAttachment = [[NSTextAttachment alloc] init];//给附件添加图片textAttachment.image = [UIImage imageNamed:face[i][@"png"]];//把附件转换成可变字符串，用于替换掉源字符串中的表情文字NSAttributedString *imageStr = [NSAttributedString attributedStringWithAttachment:textAttachment];//把图片和图片对应的位置存入字典中NSMutableDictionary *imageDic = [NSMutableDictionary dictionaryWithCapacity:2];[imageDic setObject:imageStr forKey:@"image"];[imageDic setObject:[NSValue valueWithRange:range] forKey:@"range"];//把字典存入数组中[imageArray addObject:imageDic];}}}//从后往前替换for (int i = imageArray.count -1; i >= 0; i--){NSRange range;[imageArray[i][@"range"] getValue:&range];//进行替换[attributeString replaceCharactersInRange:range withAttributedString:imageArray[i][@"image"]];}returnattributeString;}根据Cell显示内容来调整Cell的高度，代码如下：//调整cell的高度-(float)tableView:(UITableView *)tableView heightForRowAtIndexPath:(NSIndexPath *)indexPath{//根据文字计算cell的高度if ([self.dataSource[indexPath.row][@"body"][@"type"] isEqualToNumber:@(SendText)]) {NSMutableAttributedString *contentText = [self showFace:self.dataSource[indexPath.row][@"body"][@"content"]];CGRect textBound = [contentText boundingRectWithSize:CGSizeMake(150, 1000) options:NSStringDrawingUsesLineFragmentOrigin context:nil];float height = textBound.size.height + 40;return height;}if ([self.dataSource[indexPath.row][@"body"][@"type"] isEqualToNumber:@(SendVoice)]){return 73;}if ([self.dataSource[indexPath.row][@"body"][@"type"] isEqualToNumber:@(SendImage)]){return 125;}return 100; }根据cell内容和用户类型，来选择Cell,代码如下：//设置cell- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath{//根据类型选cellMySendContentType contentType = [self.dataSource[indexPath.row][@"body"][@"type"] integerValue];if ([self.dataSource[indexPath.row][@"userType"]isEqual: @(MyFriend)]) {switch (contentType) {case SendText:{TextCell *cell = [tableView dequeueReusableCellWithIdentifier:@"textCell" forIndexPath:indexPath];NSMutableAttributedString *contentText = [self showFace:self.dataSource[indexPath.row][@"body"][@"content"]];[cell setCellValue:contentText];return cell;}break;case SendImage:{heImageCell *cell = [tableView dequeueReusableCellWithIdentifier:@"heImageCell" forIndexPath:indexPath];[cell setCellValue:self.dataSource[indexPath.row][@"body"][@"content"]];__weak __block ChatViewController *copy_self = self;//传出cell中的图片[cell setButtonImageBlock:^(UIImage *image) {[copy_self displaySendImage:image];}];return cell;}break;case SendVoice:{VoiceCellTableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:@"heVoiceCell" forIndexPath:indexPath];[cell setCellValue:self.dataSource[indexPath.row]];return cell;}break;default:break;}}if ([self.dataSource[indexPath.row][@"userType"]isEqual: @(MySelf)]) {switch (contentType) {case SendText:{TextCell *cell = [tableView dequeueReusableCellWithIdentifier:@"myselfTextCell" forIndexPath:indexPath];NSMutableAttributedString *contentText = [self showFace:self.dataSource[indexPath.row][@"body"][@"content"]];[cell setCellValue:contentText];return cell;}break;case SendImage:{MyImageCell *cell = [tableView dequeueReusableCellWithIdentifier:@"myImageCell" forIndexPath:indexPath];[cell setCellValue:self.dataSource[indexPath.row][@"body"][@"content"]];__weak __block ChatViewController *copy_self = self;//传出cell中的图片[cell setButtonImageBlock:^(UIImage *image) {[copy_self displaySendImage:image];}];return cell;}break;case SendVoice:{VoiceCellTableViewCell *cell = [tableView dequeueReusableCellWithIdentifier:@"myVoiceCell" forIndexPath:indexPath];[cell setCellValue:self.dataSource[indexPath.row]];return cell;}break;default:break;}}UITableViewCell *cell;return cell;}点击发送的图片来放大图片代码如下：//发送图片的放大-(void) displaySendImage : (UIImage *)image{//把照片传到放大的controller中UIStoryboard *storyboard = [UIStoryboard storyboardWithName:@"Main" bundle:[NSBundle mainBundle]];ImageViewController *imageController = [storyboard instantiateViewControllerWithIdentifier:@"imageController"];[imageController setValue:image forKeyPath:@"image"];[self.navigationController pushViewController:imageController animated:YES];}根据键盘的高度来调整ToolView的位置，代码如下：//键盘出来的时候调整tooView的位置-(void) keyChange:(NSNotification *) notify{NSDictionary *dic = notify.userInfo;CGRect endKey = [dic[@"UIKeyboardFrameEndUserInfoKey"] CGRectValue];//坐标系的转换CGRect endKeySwap = [self.view convertRect:endKey fromView:self.view.window];//运动时间[UIView animateWithDuration:[dic[UIKeyboardAnimationDurationUserInfoKey] floatValue] animations:^{[UIView setAnimationCurve:[dic[UIKeyboardAnimationCurveUserInfoKey] doubleValue]];CGRect frame = self.view.frame;frame.size.height = endKeySwap.origin.y;self.view.frame = frame;[self.view layoutIfNeeded];}];}代码有点多，不过在关键的部分都加有注释，在图片显示View中通过捏合手势来调整图片的大小，代码如下：- (IBAction)tapPichGesture:(id)sender {UIPinchGestureRecognizer *gesture = sender;//手势改变时if (gesture.state == UIGestureRecognizerStateChanged){//捏合手势中scale属性记录的缩放比例self.myImageView.transform = CGAffineTransformMakeScale(gesture.scale, gesture.scale);}}更多iOS开发之微信聊天页面实现 相关文章请关注PHP中文网！
