DedeCms 5.7代码高亮怎么实现

时间:2020-09-06 20:00:08 作者:重庆seo小潘 来源:
DedeCms 5.7代码高亮怎么实现? 无论建博客网站还是CMS类型网站,很多都需要代码高亮,织梦CMS是国内比较优秀的CMS建站系统之一,不像Wordpress一样有大把大把的插件可用,我用的是最新的dedeCMS 5.7,在网上搜了很长时间资料,大都写的是CKEditor和SyntaxHi

DedeCms 5.7代码高亮怎么实现

DedeCms 5.7代码高亮怎么实现?

无论建博客网站还是CMS类型网站,很多都需要代码高亮,织梦CMS是国内比较优秀的CMS建站系统之一,不像Wordpress一样有大把大把的插件可用,我用的是最新的dedeCMS 5.7,在网上搜了很长时间资料,大都写的是CKEditor和SyntaxHighlighter整合的文章,但是dedecms将ckeditor做了集成,和一般的只针对于ckeditor对config.js修改不同。

推荐学习:织梦cms

所以只能自己琢磨修改了,现将方法写出供站长朋友们参考:

一、首先去SyntaxHighlighter官方网站下载,网址:http://alexgorbatchev.com/SyntaxHighlighter/download/,建议下载2.1版本,3.0版本的貌似不支持自动换行,这里使用的是2.1.382版本。将下载的文件解压在syntaxHighlight文件夹里,去除里面无用的文件,只留下scripts和styles文件夹。

二、新建dialogs文件夹,在里面新建一个名为syntaxhighlight.js的文件,因代码量过大,不宜贴出,请直接下载syntaxhighlight.js

如果想修改代码区域的样式请在以下代码处修改<table>标签里的样式。

代码如下:onOk : function() { var i = this.getParentEditor(); var h = i.getSelection(); var g = h.getStartElement(); var l = g && g.getAscendant("pre", true); var j = f(); this.commitContent(j); var k = e(j); var m = CKEDITOR.dom.element .createFromHtml('<table style="border:1px solid #EAED9C;width:660px;"><tr><td><pre>三、然后新建images文件夹,存放一个syntaxhighlight.gif图片文件,该图片文件在编辑器工具栏上显示,可以使用16*16像素的图片

四、新建lang文件夹,是语言包,里面有两个文件,一个是中文cn.js一个是英文en.js,代码内容如下:

 en.js代码如下:

代码如下:CKEDITOR.plugins.setLang('syntaxhighlight', 'en', { syntaxhighlight: { title: 'Add or update a code snippet', sourceTab: 'Source code', langLbl: 'Select language', advancedTab: 'Advanced', hideGutter: 'Hide gutter', hideGutterLbl: 'Hide gutter & line numbers.', hideControls: 'Hide controls', hideControlsLbl: 'Hide code controls at the top of the code block.', collapse: 'Collapse', collapseLbl: 'Collapse the code block by default. (controls need to be turned on)', showColumns: 'Show columns', showColumnsLbl: 'Show row columns in the first line.', lineWrap: 'Disable line wrapping', lineWrapLbl: 'Switch off line wrapping.', lineCount: 'Default line count', highlight: 'Highlight lines', highlightLbl: 'Enter a comma seperated lines of lines you want to highlight, eg <em>3,10,15</em>.' } });cn.js代码如下:

代码如下:CKEDITOR.plugins.setLang('syntaxhighlight', 'cn', { syntaxhighlight: { title: '添加或更新代码', sourceTab: '代码', langLbl: '选择语言', advancedTab: '高级', hideGutter: '隐藏分割线', hideGutterLbl: '隐藏分割线和行号', hideControls: '隐藏工具栏', hideControlsLbl: '隐藏浮动工具栏', collapse: '代码折叠', collapseLbl: '默认折叠代码块 (需要启用工具栏)', lineWrap: '自动换行', lineWrapLbl: '关闭自动换行', autoLinks: '自动链接', autoLinksLbl: '不自动转换超链接', lineCount: '起始行号', highlight: '高亮行号', highlightLbl: '输入以逗号分隔的行号, 如 <em>3,10,15</em>.' } });五、新建plugin.js文件,该文件是ckeditor插件必须得文件,里面是对该插件的一些配置,代码如下:

代码如下:CKEDITOR.plugins.add("syntaxhighlight", { requires : [ "dialog" ], lang : [ "cn" ], init : function(a) { var b = "syntaxhighlight"; var c = a.addCommand(b, new CKEDITOR.dialogCommand(b)); c.modes = { wysiwyg : 1, source : 1 }; c.canUndo = false; a.ui.addButton("Code", { label : a.lang.syntaxhighlight.title, command : b, icon : this.path + "images/syntaxhighlight.gif" }); CKEDITOR.dialog.add(b, this.path + "dialogs/syntaxhighlight.js") } });六、由于dedecms 5.7自己集成了一个dedepage插件,用来添加ckeditor自定义插件,在/include/ckeditor/dedepage文件夹下,打开plugin.js文件在最后面添加:

requires : ['syntaxhighlight'],其中syntaxhighlight为代码高亮插件的文件夹名,添加完之后的代码如下: [code] // Register a plugin named "dedepage". (function() { CKEDITOR.plugins.add( 'dedepage', { init : function( editor ) { // Register the command. editor.addCommand( 'dedepage',{ exec : function( editor ) { // Create the element that represents a print break. // alert('dedepageCmd!'); editor.insertHtml(""); } }); // alert('dedepage!'); // Register the toolbar button. editor.ui.addButton( 'MyPage', { label : '插入分页符', command : 'dedepage', icon: 'images/dedepage.gif' }); // alert(editor.name); }, requires : [ 'fakeobjects' ], requires : ['syntaxhighlight'] }); })(); [/code]七、修改/include/ckeditor/ckeditor.inc.php文件,在$toolbar['Basic']数组的最后一行添加元素Code,修改后代码如下:

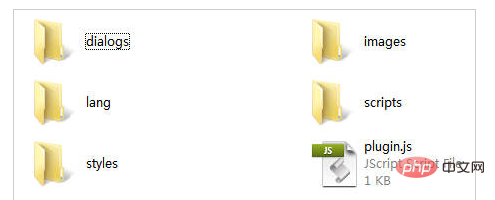

代码如下:$toolbar['Basic'] = array( array( 'Source','-','Templates'), array( 'Cut','Copy','Paste','PasteText','PasteFromWord','-','Print'), array( 'Undo','Redo','-','Find','Replace','-','SelectAll','RemoveFormat'), array( 'ShowBlocks'),array('Image','Flash'),array('Maximize'),'/', array( 'Bold','Italic','Underline','Strike','-'), array( 'NumberedList','BulletedList','-','Outdent','Indent','Blockquote'), array( 'JustifyLeft','JustifyCenter','JustifyRight','JustifyBlock'), array( 'Table','HorizontalRule','Smiley','SpecialChar'), array( 'Link','Unlink','Anchor'),'/', array( 'Styles','Format','Font','FontSize'), array( 'TextColor', 'BGColor', 'MyPage','Code') );至此,编辑器的修改已经完成,修改后的syntaxhighlight文件夹文件目录结构图如下图:

DedeCms 5.7代码高亮怎么实现

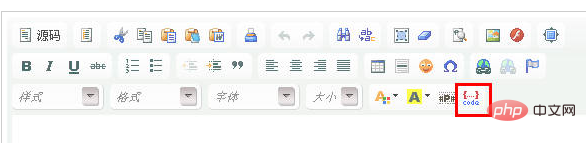

  将syntaxhighlight文件夹上传到/include/ckeditor/plugins/文件夹下,打开后台,添加文章试一下,看看编辑器的上最后一行是否出现了如图所示的按钮:

DedeCms 5.7代码高亮怎么实现

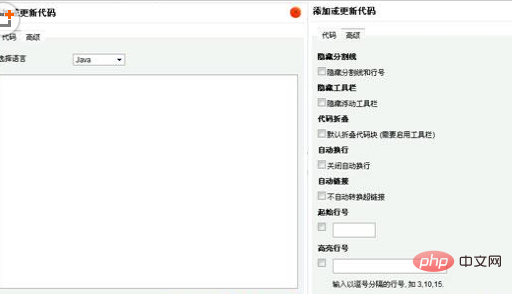

  点击按钮弹出如下图所示的对话框输入代码,并且可以切换到高级选项对代码高亮显示做一些配置:

DedeCms 5.7代码高亮怎么实现

八、但是光这些还不够,还要在文章模板文件/templets/default/article_article.htm文件里引入高亮显示的笔刷JS文件和CSS文件,由于是需要引入很多JS,所以建议将引入的代码放在</body>标签之前,等待前面的网页加载完后加载,进行显示。

代码如下:<script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shCore.js"> </script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushJava.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushJScript.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushPhp.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushScala.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushSql.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushVb.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushXml.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushBash.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushCpp.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushCSharp.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/cripts/shBrushCss.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushDelphi.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushDiff.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushGroovy.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushPlain.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushPython.js"></script> <script type="text/javascript" alt="DedeCms 5.7代码高亮怎么实现" src="/include/ckeditor/plugins/syntaxhighlight/scripts/shBrushRuby.js"></script> <link type="text/css" rel="stylesheet" href="/include/ckeditor/plugins/syntaxhighlight/styles/shCore.css"/> <link type="text/css" rel="stylesheet" href="/include/ckeditor/plugins/syntaxhighlight/styles/shThemeDefault.css"/> <script type="text/javascript"> SyntaxHighlighter.config.clipboardSwf = '/include/ckeditor/plugins/syntaxhighlight/scripts/clipboard.swf'; SyntaxHighlighter.all(); </script>最后发表并生成的文章页面效果图如下:

DedeCms 5.7代码高亮怎么实现

  当然,该整合也有点缺点,就是在html页面页面中可能会引入大量的JS文件,加载起来可能会比较慢,另外可拓展性不强,我也会不定期优化该插件,也希望各位网友能提出意见。以上就是DedeCms 5.7代码高亮怎么实现的详细内容,更多请关注小潘博客其它相关文章!
